Other Titanium Products

Availability:
Quantity:

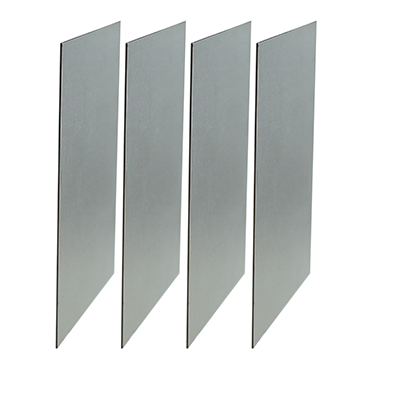

Titanium Plate and Sheet


03 08


Commodity

Size(MM)

Grade

Specification

Titanium Plate/Sheet

    Thickness

   Width

 Length

Gr1,Gr2,Gr3, Gr4

Gr5,Gr7,

Gr9,Gr12,

Gr23, Ti-15333

ASTM B265 ASME SB265,ASTM

F136,

ASTM F67,ISO5832-1,

ISO5832-3,AMS4911

 0.4 -<6.0

 ≤ 1050

 ≤ 3048

  6.0-40

 ≤2500

 ≤ 4000


Titanium Tube Pipe


ti tube

Gr9 ti tube


Commodity Name

Titanium Tube/Pipe

Grade

Gr1, Gr2 Gr7 Gr9 Gr12 ,Gr16

3.7025 3.7035 3.7235 3.7195 3.7105

BT1-00 BT1-0

Type

welded tube, seamless tube

Standard

GB/T3624, GB/T3625, ASTM B337,ASTM B B338,ASTM B861/ B862

ASME SB338 ASME SB337 ASME SB861/ SB862 DIN17861,ect

Dimension   (MM)

OD(3-210)*Thk(0.2-10)*L (max 12M)

Application

heat exchanger coil pipe ;

condenser; petroleum pipeline ; sea farming

evaporimeter; fluid transpotration piping, etc.

Inspection Equipment

non-destructive tester; UT testing detector; tensile tester

digital ultrasonic detector; infrared tester; HV hardness tester


Titanium Flange

ti flange01

ti flange03 ti flange02



products

Titanium  Flange

Material Grade

Gr1, Gr2, Gr3, Gr4, Gr7, Gr9, GR12

Standard

ANSI B16.5, ASTM B16.5, ASME B16.47, JIS B2220, DIN2630-2637,EN1092-1, AWWA , ASTM A182 AND ASME SA182

size

1/2"~ 60"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)

Pressure Clase

PN0.25~32Mpa

(DIN)   PN6,PN10,PN16,PN25 though PN250

150LB, 250LB ,300LB, 400 LB,500LB, 600 LB,900LB, 1500LB,2500LB

Technique

forged and CNC machined

type

WN, SO, BL, PL, TH, LJ, SW, accept customization

Flange surface

FF, RF, TG, RJ , MFM, etc.

Application

aerospace industry, engines and parts material for aircraft, and space rockets
power industry and desalination, thermal and nuclear power plants, desalination plants, chemical Industry, chemical plants (reactors, pipes, heat exchangers, valves, etc.), ocean development, ocean platforms, ship hulls, bridges, rigs
civil engineering and petrochemical equipment.

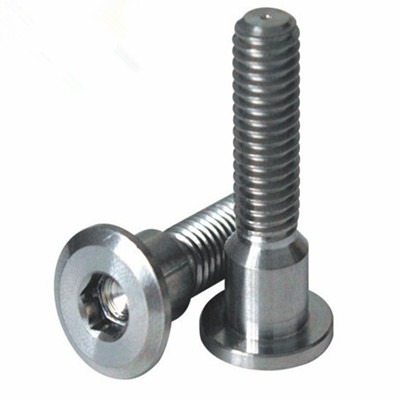

Titanium Fastener

ti bolt 04 ti nut01 Ti washer02

Unique Titanium has a large inventory of titanium ( pure titanium Grade 2, Ti-6Al-4V ASTM Grade 5) fasteners. We stock an extensive selection of bolts, nuts and washers.

Quality and dimension conform to DIN, ISO, UNC, UNF or can be customized as per customers' drawings. We provide hex head bolts, hex flange head bolts, cheese head bolts, socket head screws, slotted screws, button head bolts, hex nuts, nylon lock nuts, flat washers and drilled washers between M3-M54 and UNC 3/16"-2".  We also supply customized parts according to specific drawings.


Grade

Gr1,Gr2,Gr5(6Al4V),Gr7,Gr9,Gr11,Gr12,Gr23 etc.

Standard

GB,DIN, IFI,UNC,JIS, BS,BSW ,ISO

DIN912,DIN913,SIN914,DIN915,DIN916,DIN931,DIN933,DIN7991,DIN7984,DIN6921,ISO 7380,JIS,BS etc.

Specification

screw: M1.6--M64*L6—300mm (or as per your inquired )

bolt: M1.6--M64*L6—300mm (or as per your inquired )

nut: M2.5--M64

washer: M2.5--M64

Features

1, light weight;  2, acid and alkali Resistance;  3, anti-corrosion;

4, excellent mechanical strength;

Drive Type

slotted , hex , allen , torx , spline drive, etc.

Head Type

hex head , hex socket head, hex flange head , cheese head , slotted screws, button head, etc.

Thread

half / full, fine / coarse

Surface Treatment

polishing, anodizing, black oxide and plating color

Applications

1, equipment part;  2, parts for bicycle, car, motorcycle and other vehicles;  3, aerospace field; 4,industry field;  5, medical field;
